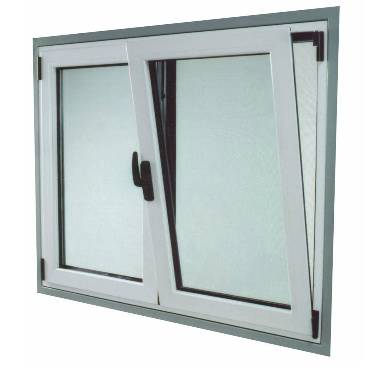

The professional name of inward opening window is casement window, which is a hardware system that can make the window have the functions of inward opening, downward hanging and locking by operating the handle. That is, not only can be the same as ordinary casement windows, to the interior of the casement window, but also can be hung down to open, that is, the lower part of the window position does not move, and the upper part of the tilt to the interior. This is the dominant way of opening windows in continental Europe, but in China is a new way of opening windows.
Structural component

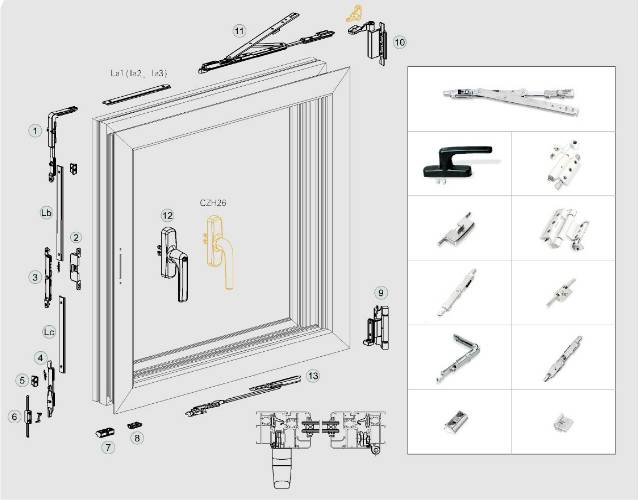

Hardware components include: handles, actuator locks, actuator levers, anti-misoperation devices, tilt rods, Euro slot locks, anti-lift locks, turnbuckles, inverted locks, support seats, upper and lower hinges and connecting horns.
Comparative advantages:
Good ventilation:
Because the lower hanging position is the middle position between opening and closing, it allows the room to circulate naturally with the natural air. It avoids the danger of high C02 levels in the room and eliminates the possibility of rainwater entering the room. Fresh air creates comfortable living conditions.
Convenient design:
Various series of hardware fittings provide great convenience for architects to design and arrange the windows, through the linkage operation of the handles to make the window sashes have the functions of internal casement, downward suspension and closure, and due to the cleverly designed supporting structure, it achieves the purpose of safe operation.
Exquisite appearance.
For the hardware of the most commonly used casement window, people can only see the handles and supporting parts, while other hardware is hidden inside the window sash and frame, which is invisible from outside. The new generation of internal casement hardware hides all the parts except the handle, giving people a neat and clear feeling.
Excellent security:
The various functions operated by the linkage hardware and handles arranged around the sash make the window extremely secure as the sash is locked to the frame on all sides when it is closed.
Easy cleaning of the window:
Simple operation of the linkage handle to turn the outside of the sash to the inside of the window makes cleaning the outside surface of the window both easy and safe.

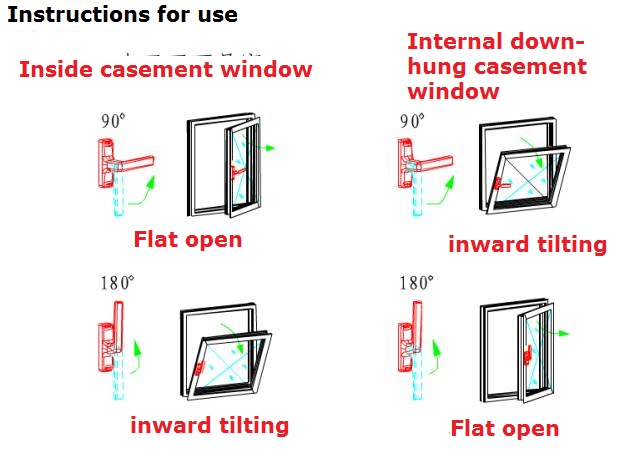

Operation of broken bridge aluminium inward opening and reversing windows
1,The handle can be turned upwards 180º to achieve inverted opening, with an opening angle between 5º and 10º;
2,When the handle is in horizontal position, it can realise inward opening function, and the inward opening angle can be controlled by the lower limiters;
3, The angle of inner opening can be controlled by the limiters at the lower end.
point of note
1, be sure to close the window completely, and then open the casement or upper hanging, when not completely closed tightly, start a mess of twisting, between the hardware transmission rod will be misplaced, there will be closed not tight, or hanging crooked.
2, when the situation is not strict, don’t be in a hurry, to slowly adjust back to close, the so-called adjustment, is to let the window back to the window position, then come back to do the casement or hanging.
3, if indeed can not be solved, call the manufacturer’s telephone repair.
